Controller Boards - Load Cell Amps


I've been working tirelessly to bring the sim racing community the products it wants and demands.  I'm proud to have developed my controller boards and make them available to you.  These are professionally developed and engineered, and will do the job you demand.

All of my devices are readily available and I use components directly from large, international manufacturers such as Cypress Logic, Microchip and Texas Instruments.  You'll NEVER see delays from me!

NOTE:  These are USB devices and require no external software to manage.  You plug them into a Windows PC, the driver will install and then you go off to the races.  They're simple.  Also note that due to the nature of these devices, I will not accept returns on them.  If you blow it up, you're on your own.  All boards are fully tested prior to shipping and are certified to be fully functional.

ALL CIRCUIT BOARD ORDERS WILL SHIP NO LATER THAN A WEEK FROM PURCHASE

DSD 12 Bit Controllers!
5 or 6 channels of 12 bit resolution!
(4096 Steps for perfect accuracy)

FREE WORLDWIDE SHIPPING
(12 bit boards measure 49mm x 60mm)






My 12 bit board features 36 total button inputs and 6 12-bit analog channels offering 4096 steps of resolution per channel.
This is the only 12 bit bit board made in the US.

PLEASE NOTE:  ALL BOARDS REQUIRE NO SOLDERING

All boards ship free to anywhere in the world!

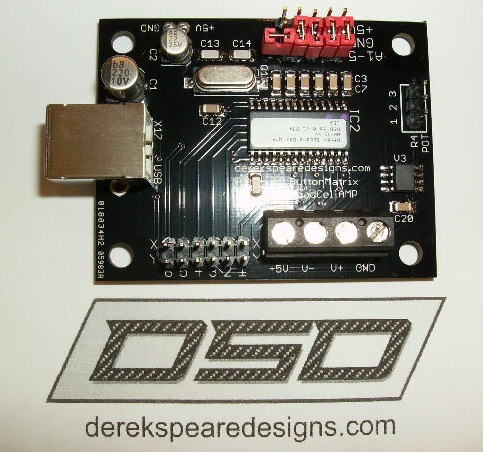

12 Bit Controller w/ integrated load cell amp

5 analog channels, 1 load cell channel - all 12 bit resolution
Variable gain control (shown with load cell amp below) is included.

(49.75 US$ - Free Worldwide Shipping)

Image description

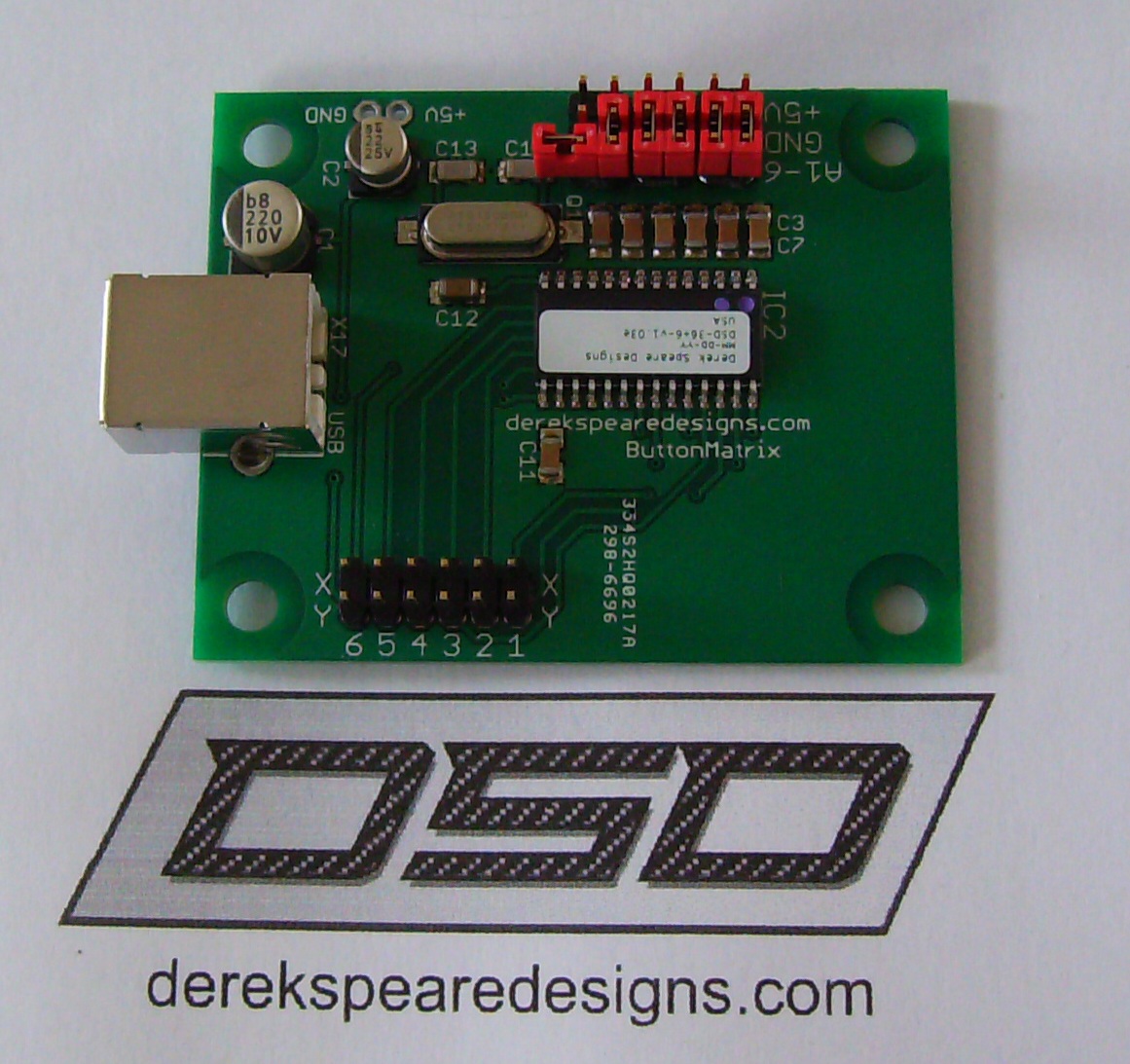

DSD 12 Bit Controller - 6 Analog Channels

6-12 bit analog inputs, 36 buttons

(39.75 US$ - Free Worldwide Shipping)

Image description
DSD 32 Button Controller
No Matrix Needed
Connect push buttons, rotary encoders or rotary switches or toggles without any hassle!

No Soldering!

(measures 48mm x 100mm)

$34.75 - FREE Shipping Anywhere!


Image description
Image description
Image description
Image description
Image description

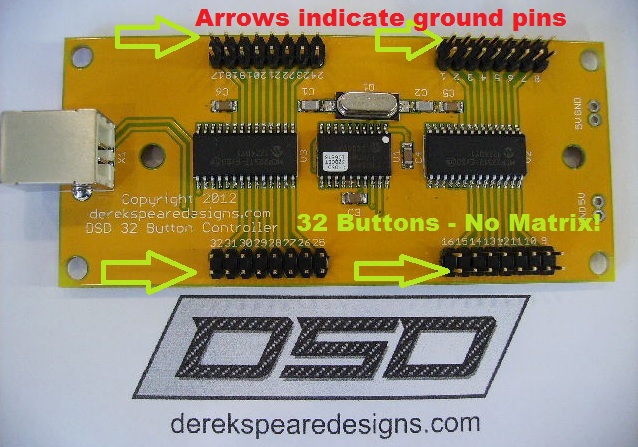

The 32 Button Board - Available for Orders!

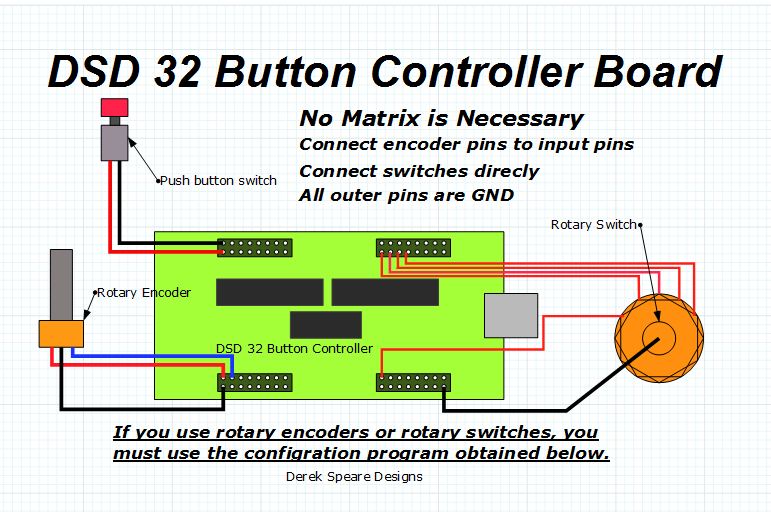

The 32 Button board allows for direct connections from push button switches, toggle switches, rotary encoders or rotary switches.  You can use any combination of these types up to 32 inputs.  No matrix is needed, no diodes are needed, no soldering is needed.  This board is about as easy to use as eating pie.

If you are not using encoders or rotary switches, you DO NOT need to run the configuration program.  If you connect encoders/rotaries you must configure the board, but once you configure the board, you don't need to run it again

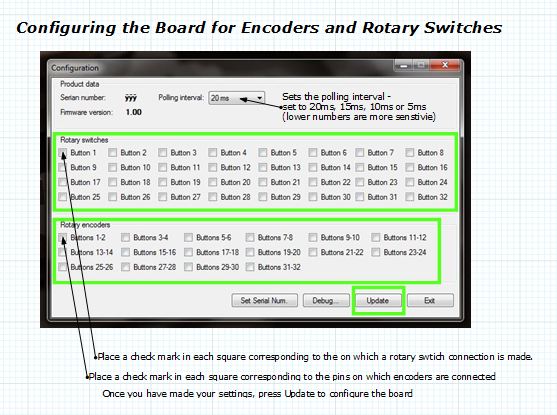

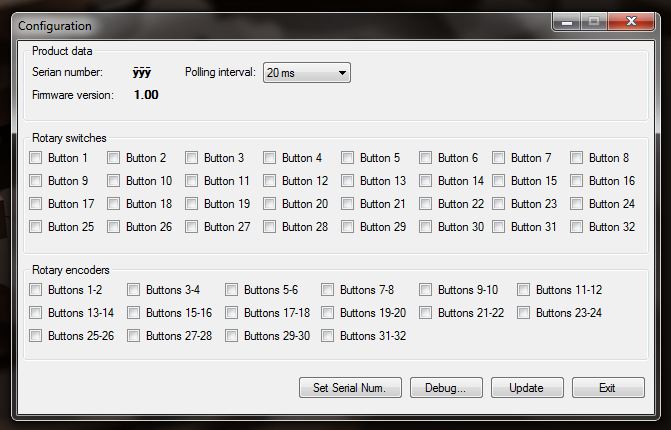

Use the DSD32Config.zip Utility to configure your board to run rotary encoders or rotary switches.  Click the link to the right for the download.

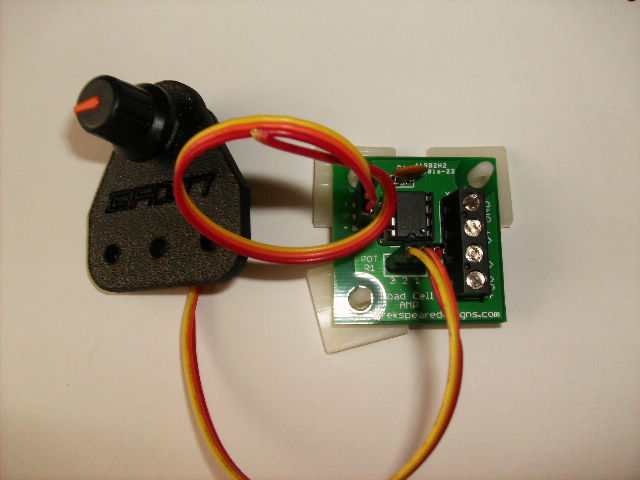

Freestanding Load Cell Amplifier
 with Variable Gain Control
The only one offering it!

26.75 US$ - FREE SHIPPING

Why variable gain?  It's simple.  You can adjust the sensitivity of your load cell and still maximize your braking channel bandwidth.   If you have 4096 steps of resolution, why waste half of it by using a fixed gain amp?  My load cell amp (and my 12bit board with integrated amp) lets you use every step you're paying for!

THREE WEEK LEAD TIME FOR LOAD CELL AMPS


Image description

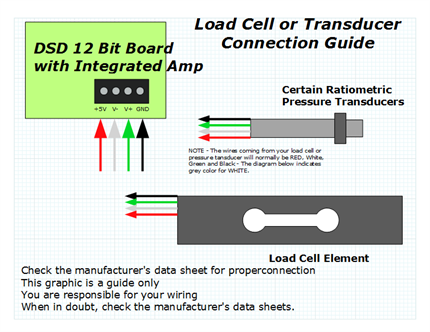

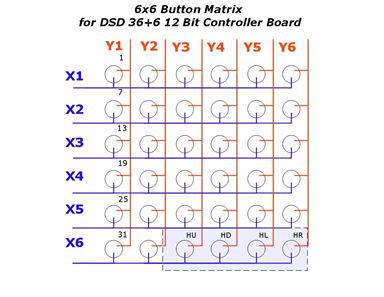

Connection Diagrams and Technical Information


READ THIS INFORMATION COMPLETELY.

For 12 Bit DSD Boards
Image description
Image description
Image description
Errata:  Use 100k Ohm potentiometers if you connect pots to the analog channels.

My boards will also allow you to connect hall effect sensors, or pressure transducers to the analog channels, and refer to the manufacturer's data sheets for correct wiring instructions.

I supply shunts on all boards with analog inputs.  If you are not using that particular input, leave the shunt on the GND and A(n) pin to prevent calibration interference.

My recommendations are limited to what is here on this page.

If I have it here on my site, then it's for sale, if not, then it's not for sale.




If you have one of my boards, then I presume you know what to do with it.

All boards are professionally manufactured with clear connection labeling on them.  They follow standard conventions for connections.

Please note that I do not offer various components such as switches, toggles, wiring other bits for sale.  Refer to your supplier of choice for any electromechanical components.  I recommend that you use the following components with my devices of the following types:
  • Potentiometers:  Bourns 100k - #91A1A-B28-B20L
  • Hall Sensors:  Allegro 1302
  • Rotary Encoders:  CTS #288T232R161A2
  • Rotary Switch: Alpha SR2611F-0112-21R0B-D8-S
  • Jumpers:  Standard 2, 3 or 4 Pin, Female - pin spacing 0.100"



ALL CIRCUIT BOARD ORDERS WILL SHIP WITHIN A WEEK OF PURCHASE


NB - My 10 bit boards have been discontinued due to the release of my 12 bit boards.  My 12 bit boards offer 4 times the channel bandwidth and more inputs - for the same money!
